思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置基础教程

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

首先将AP连接电脑加电后装好连接线驱动，到设备管理器中查看AP的端口连接的数据如图：

端口设置中数据参数改和设备管理器中的一致，数据刘控制选.

点击回车可以看见AP说明已经连接好了。如图：

输入用户cisco 密码Cisco 或cisco 密码Cisco，都可以。

查看版本号 show version。可以看到flash:/c1130-k9w8-mx.124-21a.jhb1。由于是k9w8说明它是瘦AP，瘦AP无法单独使用，需要结合无线控制器，或将瘦AP转换成胖AP

W8是瘦AP，胖AP是W7

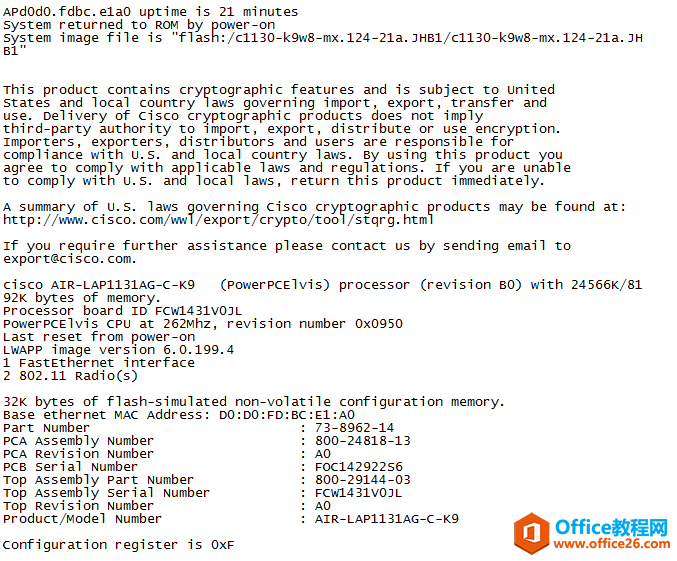

APd0d0.fdbc.e1a0>show version

Cisco IOS Software, C1130 Software (C1130-K9W8-M), Version 12.4(21a)JHB1, RELEASE SOFTWARE (fc1)

Technical Support: http://www.cisco.com/techsupport

Copyright (c) 1986-2010 by Cisco Systems, Inc.

Compiled Wed 11-Aug-10 15:39 by prod_rel_team

ROM: Bootstrap program is C1130 boot loader

BOOTLDR: C1130 Boot Loader (C1130-BOOT-M) Version 12.3(8)JEA, RELEASE SOFTWARE (fc2)

APd0d0.fdbc.e1a0 uptime is 32 minutes

System returned to ROM by power-on

System image file is "flash:/c1130-k9w8-mx.124-21a.JHB1/c1130-k9w8-mx.124-21a.JHB1"

This product contains cryptographic features and is subject to United

States and local country laws governing import, export, transfer and

use. Delivery of Cisco cryptographic products does not imply

third-party authority to import, export, distribute or use encryption.

Importers, exporters, distributors and users are responsible for

compliance with U.S. and local country laws. By using this product you

agree to comply with applicable laws and regulations. If you are unable

to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:

http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to

export@cisco.com.

cisco AIR-LAP1131AG-C-K9 (PowerPCElvis) processor (revision B0) with 24566K/8192K bytes of memory.

Processor board ID FCW1431V0JL

PowerPCElvis CPU at 262Mhz, revision number 0x0950

Last reset from power-on

LWAPP image version 6.0.199.4

1 FastEthernet interface

2 802.11 Radio(s)

32K bytes of flash-simulated non-volatile configuration memory.

Base ethernet MAC Address: D0:D0:FD:BC:E1:A0

Part Number : 73-8962-14

PCA Assembly Number : 800-24818-13

PCA Revision Number : A0

PCB Serial Number : FOC142922S6

Top Assembly Part Number : 800-29144-03

Top Assembly Serial Number : FCW1431V0JL

Top Revision Number : A0

Product/Model Number : AIR-LAP1131AG-C-K9

Configuration register is 0xF

进入后发现无法进入configuration t 由于AIR-LAP1131AG-C-K9是瘦AP无法单独使用，需要转换成胖AP才可以。

需要将AIR-LAP1131AG-C-K9需要刷新成为胖AP，先下载AIR-LAP1131AG-C-K9胖AP的ios。

下载完成之后，还需要设置一个TFTP，这里我使用的是3CDaemon的，在D盘设置一个ciscotftp文件夹，留存放上面的AIR-LAP1131AG-C-K9胖AP文件。

可以看到AIR-LAP1131AG-C-K9现在的使用的ios版本

TFTP的服务器主机ip地址设置为10.0.0.2 255.0.0.0 镜象文件改名为"c1240-k9w7-tar.default"(IP地址和镜像文件名这样改从后面的提示中可以知道是为什么)

由于AP默认IP地址为：10.0.0.1，上面的本地tftp地址所以设置为10.0.0.2为10网段。

那么AP如何去找到10.0.0.2的tftp呢，这时image recovery时，发出一个255.255.255.255的广播地址，如果找到有默认default的ios，它就会自动去加载。

按住mode键，重新启动电源。

刷新过程：

flashfs[0]: 29 files, 8 directories

flashfs[0]: 0 orphaned files, 0 orphaned directories

flashfs[0]: Total bytes: 15998976

flashfs[0]: Bytes used: 7186432

flashfs[0]: Bytes available: 8812544

flashfs[0]: flashfs fsck took 32 seconds.

Base ethernet MAC Address: d0:d0:fd:bc:e1:a0

Initializing ethernet port 0...

Reset ethernet port 0...

Reset done!

ethernet link up, 100 mbps, full-duplex

Ethernet port 0 initialized: link is up

button is pressed, wait for button to be released... -看到上面wait的提示后，松开mode键

button pressed for 26 seconds

process_config_recovery: set IP address and config to default 10.0.0.1

process_config_recovery: image recovery

image_recovery: Download default IOS tar image tftp://255.255.255.255/c1130-k9w7-tar.default

examining image...

extracting info (283 bytes)

Image info:

Version Suffix: k9w7-.124-10b.JDA3

Image Name: c1130-k9w7-mx.124-10b.JDA3

Version Directory: c1130-k9w7-mx.124-10b.JDA3

Ios Image Size: 4844032

Total Image Size: 5581312

Image Feature: WIRELESS LAN

Image Family: C1130

Wireless Switch Management Version: 1.0

Extracting files...

c1130-k9w7-mx.124-10b.JDA3/ (directory) 0 (bytes)

c1130-k9w7-mx.124-10b.JDA3/html/ (directory) 0 (bytes)

c1130-k9w7-mx.124-10b.JDA3/html/level/ (directory) 0 (bytes)

c1130-k9w7-mx.124-10b.JDA3/html/level/1/ (directory) 0 (bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/appsui.js (557 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/back.shtml (498 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/cookies.js (5026 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/forms.js (17486 bytes)...

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/sitewide.js (16510 bytes)...

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/config.js (23721 bytes).....

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/stylesheet.css (3214 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/popup_capabilitycodes.shtml.gz (1015 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/filter.js.gz (1802 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/filter_vlan.js.gz (1459 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/filter_mac_ether.js.gz (1710 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/security.js.gz (957 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/vlan.js.gz (955 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ssid.js.gz (4107 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/dot1x.js.gz (982 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/network-if.js.gz (1967 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/stp.js.gz (952 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ap_assoc.shtml.gz (6121 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ap_event-log.shtml.gz (4398 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ap_home.shtml.gz (6837 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ap_network-if.shtml.gz (4064 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ap_network-map.shtml.gz (4356 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ap_services.shtml.gz (4181 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ap_system-sw.shtml.gz (3382 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/ap_contextmgr.shtml.gz (4187 bytes).

c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/ (directory) 0 (bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/ap_title_appname.gif (2042 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_button.gif (1211 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_button_1st.gif (1171 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_button_cbottom.gif (318 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_button_current.gif (1206 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_button_endcap.gif (878 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_button_encap_last.gif (333 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_button_last.gif (386 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_button_nth.gif (1177 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_leftnav_dkgreen.gif (869 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_leftnav_green.gif (879 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_leftnav_upright.gif (64 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/apps_leftnav_yellow.gif (881 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/arrowdown_red.gif (108 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/arrowup_green.gif (108 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/corner_ur_7.gif (53 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/dkgreenmask11_up.gif (113 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/dkgreenmask28_upright.gif (110 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/grn_vertlines_bottom.gif (149 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/grn_vertlines_top.gif (141 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/hinav_plus.gif (56 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/left_bkg.gif (146 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/list_data.gif (122 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/logo.gif (29454 bytes)......

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/pixel.gif (49 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/sitewide_downleft.gif (53 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/sitewide_help_off.gif (934 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/sitewide_help_on.gif (934 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/sitewide_print_off.gif (111 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/sitewide_print_on.gif (111 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/spacer.gif (49 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/whitemask11_botleft.gif (62 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/whitemask11_upright.gif (61 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/event_alert.gif (73 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/event_critical.gif (73 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/event_debugging.gif (73 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/event_emergency.gif (73 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/event_error.gif (73 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/event_information.gif (73 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/event_notification.gif (73 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/event_warning.gif (73 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/1/images/check_mark.gif (71 bytes)

c1130-k9w7-mx.124-10b.JDA3/html/level/15/ (directory) 0 (bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_assoc_adv.shtml.gz (4549 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_event-log_config-options.shtml.gz (6199 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_event-log_notif-options.shtml.gz (3187 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_express-setup.shtml.gz (11413 bytes)..

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_express-security.shtml.gz (13959 bytes)...

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/def_broadcast-ssid.shtml.gz (1258 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/def_no-security.shtml.gz (1577 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/def_eap-security.shtml.gz (1785 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/def_wep-security.shtml.gz (1592 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/def_wpa-security.shtml.gz (1848 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_network-if_ipaddress.shtml.gz (5075 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_network-if_802-11.shtml.gz (6803 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_network-if_802-11_b.shtml.gz (6827 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_network-if_802-11_c.shtml.gz (24123 bytes).....

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/dBm_mW_translation_table.shtml.gz (1402 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_network-if_802-11_d.shtml.gz (4546 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_network-if_ethernet.shtml.gz (4821 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_network-if_ethernet_b.shtml.gz (5934 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_network-map_ap-adjacent-list.shtml.gz (4277 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec.shtml.gz (7745 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_ap-client-security.shtml.gz (26688 bytes).....

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_ap-key-security.shtml.gz (12461 bytes)..

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_local-admin-access.shtml.gz (7468 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_network-security_a.shtml.gz (10738 bytes)..

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_network-security_b.shtml.gz (5798 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_lrs.shtml.gz (5575 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_lrs_b.shtml.gz (9045 bytes)..

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_lrs_c.shtml.gz (6689 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_ap-client-security-adv_a.shtml.gz (5473 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_ap-client-security-adv_b.shtml.gz (5552 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_ap-client-security-adv_c.shtml.gz (5157 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_ap-client-security-adv_d.shtml.gz (4094 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_ids_mfp.shtml.gz (4401 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_ids_mfp_stats.shtml.gz (4129 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_dot1x-security.shtml.gz (6947 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_dot1x-certificates.shtml.gz (11666 bytes)..

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_sec_dot1x-cert_fingerprint.shtml.gz (573 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_arp.shtml.gz (3508 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_cdp.shtml.gz (5612 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_console-telnet.shtml.gz (7195 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_dns.shtml.gz (4078 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_filters.shtml.gz (5712 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_filters-ip.shtml.gz (8948 bytes)..

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_filters-mac.shtml.gz (4491 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_filters-ether.shtml.gz (4343 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_hot-standby.shtml.gz (6000 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_http.shtml.gz (6387 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_mobile-ip-b.shtml.gz (7199 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_mobile-ip-c.shtml.gz (4619 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_mobile-ip-d.shtml.gz (5679 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_mobile-ip.shtml.gz (6565 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_qos-traffic.shtml.gz (8666 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_qos.shtml.gz (12685 bytes)..

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_qos_adv.shtml.gz (4941 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_voice.shtml.gz (4578 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_voice-traffic.shtml.gz (6856 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_snmp.shtml.gz (8504 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_sntp.shtml.gz (6299 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_services_vlan.shtml.gz (13282 bytes)..

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_stationview-client_ltest.shtml.gz (5965 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_system-sw_upgrade-b.htm (225 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_system-sw_upgrade-b.shtml.gz (6712 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_system-sw_upgrade.htm (223 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_system-sw_upgrade.shtml.gz (6746 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_system-sw_upgrade_poll.htm (228 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_system-sw_upgrade_poll.shtml (3590 bytes)

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_system-sw_sysconfig.shtml.gz (7652 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_stationview-client.shtml.gz (6067 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_contextmgr_ap.shtml.gz (5335 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_contextmgr_scm.shtml.gz (5793 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_contextmgr_scm-groups.shtml.gz (8003 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/html/level/15/ap_contextmgr_scm_summary.shtml.gz (5559 bytes).

extracting c1130-k9w7-mx.124-10b.JDA3/c1130-k9w7-mx.124-10b.JDA3 (4572943 bytes)................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

extracting c1130-k9w7-mx.124-10b.JDA3/7101.img (131328 bytes)............................

extracting c1130-k9w7-mx.124-10b.JDA3/6701.img (131328 bytes)............................

extracting c1130-k9w7-mx.124-10b.JDA3/info (283 bytes)

extracting info.ver (283 bytes)

Deleting current version...

Deleting flash:/c1130-rcvk9w8-mx...done.

New software image installed in flash:/c1130-k9w7-mx.124-10b.JDA3

Configuring system to use new image...done.

Requested system reload in progress...download took about 317 seconds

Loading "flash:/c1130-k9w7-mx.124-10b.JDA3/c1130-k9w7-mx.124-10b.JDA3"...##########################################################################################################################################################################################################################################################################################################################################################################################################################################################################################

File "flash:/c1130-k9w7-mx.124-10b.JDA3/c1130-k9w7-mx.124-10b.JDA3" uncompressed and installed, entry point: 0x3000

executing...

Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

cisco Systems, Inc.

170 West Tasman Drive

San Jose, California 95134-1706

Cisco IOS Software, C1130 Software (C1130-K9W7-M), Version 12.4(10b)JDA3, RELEASE SOFTWARE (fc1)

Technical Support: http://www.cisco.com/techsupport

Copyright (c) 1986-2009 by Cisco Systems, Inc.

Compiled Sun 07-Jun-09 02:59 by prod_rel_team

Image text-base: 0x00003000, data-base: 0x0086A6E0

Initializing flashfs...

flashfs[1]: 170 files, 13 directories

flashfs[1]: 0 orphaned files, 0 orphaned directories

flashfs[1]: Total bytes: 15998976

flashfs[1]: Bytes used: 10827264

flashfs[1]: Bytes available: 5171712

flashfs[1]: flashfs fsck took 4 seconds.

flashfs[1]: Initialization complete....done Initializing flashfs.

Radio 1 A506 7100 E8000000 A0000000 80000000 3

Radio 1 A506 6700 E8000100 A0040000 80010000 2

tx_paks 991

tx_paks 495

This product contains cryptographic features and is subject to United

States and local country laws governing import, export, transfer and

use. Delivery of Cisco cryptographic products does not imply

third-party authority to import, export, distribute or use encryption.

Importers, exporters, distributors and users are responsible for

compliance with U.S. and local country laws. By using this product you

agree to comply with applicable laws and regulations. If you are unable

to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:

http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to

export@cisco.com.

cisco AIR-LAP1131AG-C-K9 (PowerPCElvis) processor (revision B0) with 24566K/8192K bytes of memory.

Processor board ID FCW1431V0JL

PowerPCElvis CPU at 262Mhz, revision number 0x0950

Last reset from power-on

1 FastEthernet interface

2 802.11 Radio(s)

32K bytes of flash-simulated non-volatile configuration memory.

Base ethernet MAC Address: D0:D0:FD:BC:E1:A0

Part Number : 73-8962-14

PCA Assembly Number : 800-24818-13

PCA Revision Number : A0

PCB Serial Number : FOC142922S6

Top Assembly Part Number : 800-29144-03

Top Assembly Serial Number : FCW1431V0JL

Top Revision Number : A0

Product/Model Number : AIR-LAP1131AG-C-K9

Press RETURN to get started!

刷新完成之后，可以看到如下图所示，已民经传完的ios镜像。

Show version时，可以看到ios已经改变。

这时，可以进入配置模式。

Enter configuration commands, one per line. End with CNTL/Z.

ap(config)#

ap(config)#interface bVI 1

ap(config-if)#ip address 10.41.0.81 255.255.255.0

ap(config-if)#no shutdown

ap#write

这时，可以在浏览器中，输入10.41.0.81进入配置界面。

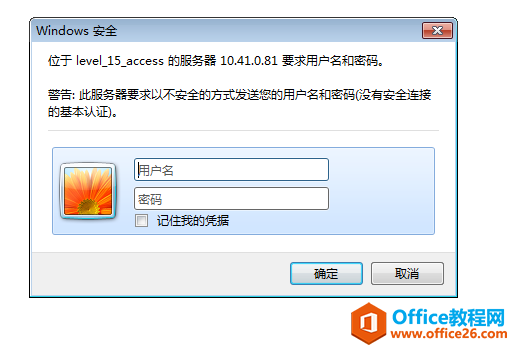

打开IE窗口 键入http：//ap的管理地址

输入用户名：Cisco 密:Cisco

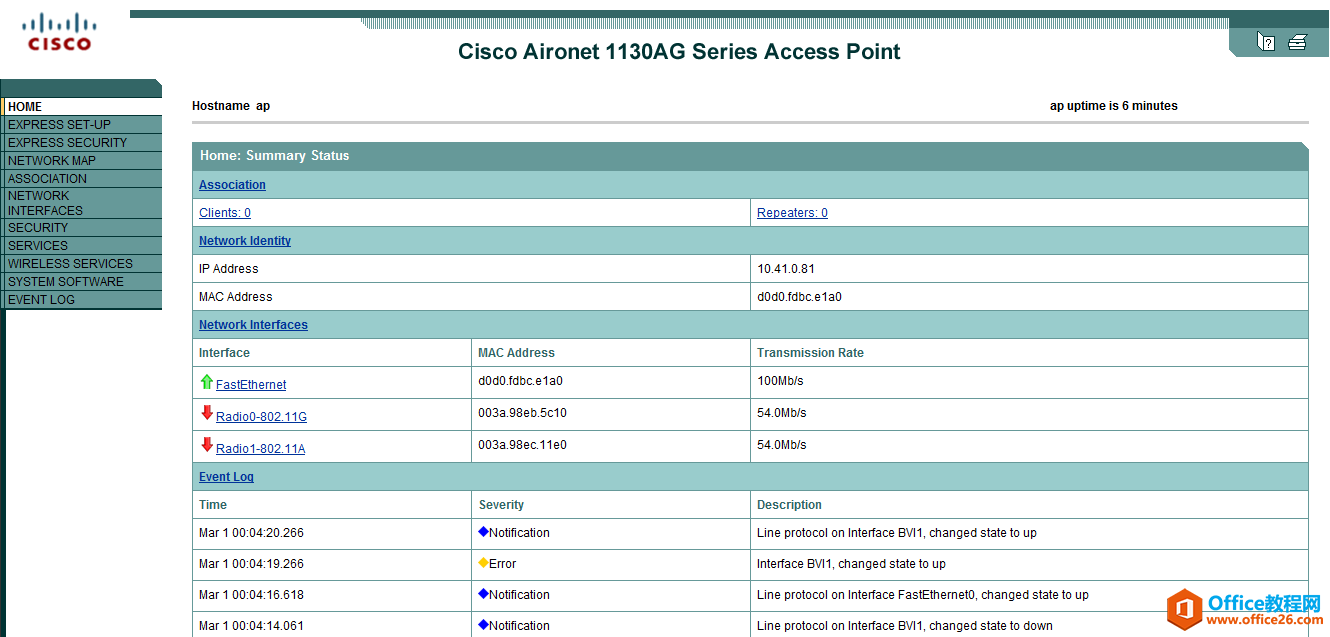

1、登录到配置界面。左面的界面，home主页

2、进入express setup快速安装。设置AP名字

3、进入安全配置选项

4、点击左侧"security下ssid manager"，右侧ssid一栏中填入"自定义的名字"，将"Radio0"和"Radio1"，前面打上"对勾"。

5、拖动右侧的活动条到下图：点击"apply"

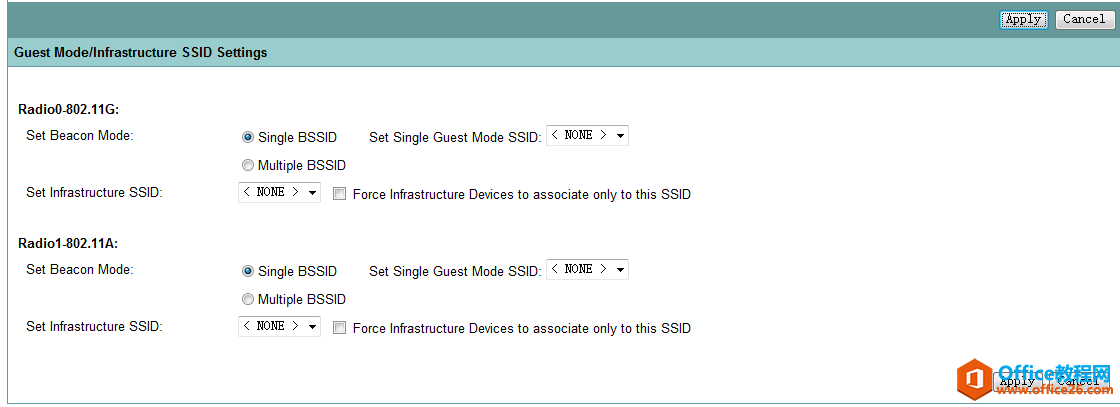

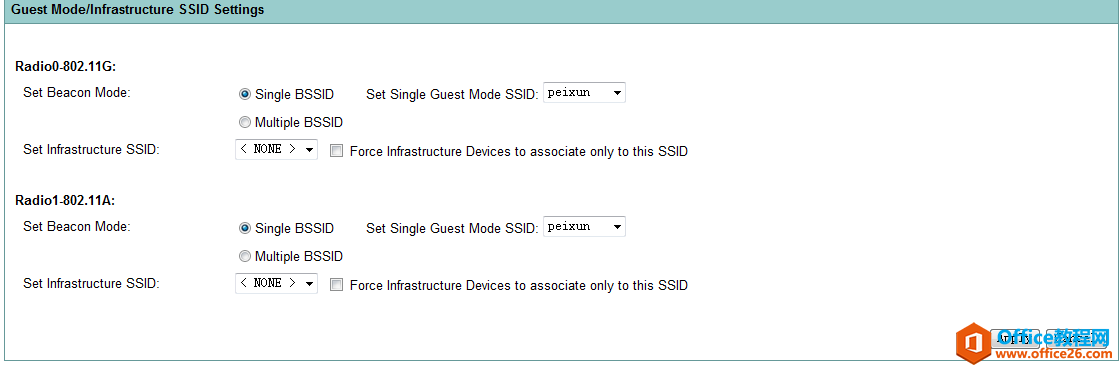

6 应用后，在最下面一项中 "Radio0"和"Radio1"中，都选择 single bssid， 在"set single guest mode ssid"一项中，在下拉菜单中选择刚刚建立好的ssid。 点击"apply"

点击上图的radious R0

7、检查无线端口启用状态，点击左侧的"network interfaces"下的"Radio0"和"Radio1"检查，这两个无线端口是否启用。

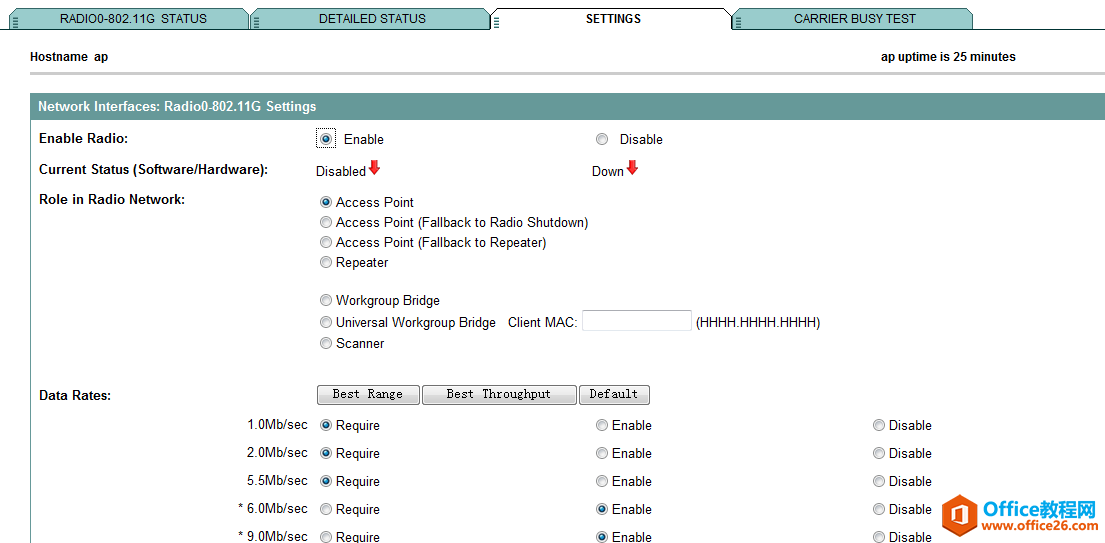

8、选择最上侧的"settings"，确保选择"enable"和"access point"，如果选择后，点击下面的应用。

开启第二个接入点时报错，提示需要选择一个data Rates

9、配置无线安全接入认证

点击左侧"security下的encryption Manager"分别配置"Radio0""Radio1"。两个接口配置相同。

选择"cipher"点击下拉菜单，选择"wep 40 bit" 选择 encryption key 1： 密钥 是 "字母a 到 f" "数字1 到 9"自由组合，长度必须是10位以上的，包含10位。 Key size 下拉菜单选择"40 bit" 点击"apply"

10、可以更改信道。

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置基础教程的下载地址：

本地下载
